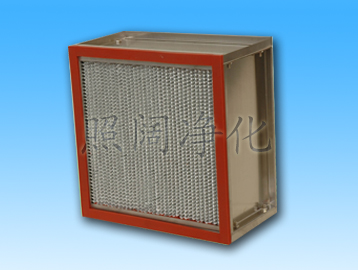

| Product name： | High-temperature HEPA filter |
| Description： |
Feature:
1. Deep-pleat filter element adopts full-automatic fold scene machine for folding;
2. Using Special fiberglass filter paper as filter material;
3. The frame made of stainless steel equipped with high temperature proof sealing strip;
4. Heat resistant temperature 250℃-300℃;
5. Large filtering space, low resistance, big dust collection, long service life;
6. Each filter through rigorous testing;
Application:
Mainly used in places require high temperature air purification equipment and system such as clean dry oven.
Technical Parameters:
|
Model |
W*H*D (mm) |
Efficiency |
Air Flow (CMH) |
Resistance (Pa) |
Filter Area M2 |
Air Flow (CMH) |
Resistance (Pa) |
Filter Area M2 |
Frame |
Filter Material |
Protecting Wire Net |
Sealing Strip |
|
|
ZZK-YG3615 |
305*610*150 |
F7 |
502 |
85 |
5.41 |
853 |
125 |
6.87 |
Aluminum frame
Galvanize frame
SS.Frame |
Fiberglass
|
Aluminium foil
|
Heat-resistant |
Heat-resistant |
|
H11 |
175 |
205 |
|||||||||||
|
H13 |
210 |
249 |
|||||||||||
|
ZZK-YG6615 |
610*610*150 |
F7 |
1004 |
85 |
10.4 |
1707 |
125 |
13.19 |
|||||
|
H11 |
175 |
205 |
|||||||||||
|
H13 |
210 |
249 |
|||||||||||
|
ZZK-YG9615 |
915*610*150 |
F7 |
1507 |
85 |
15.25 |
2562 |
125 |
19.51 |
|||||
|
H11 |
175 |
205 |
|||||||||||
|
H13 |
210 |
249 |
|||||||||||
|
ZZK-YG12615 |
1220*610*150 |
F7 |
2008 |
85 |
20.24 |
3414 |
125 |
25.97 |
|||||
|
H11 |
175 |
205 |
|||||||||||
|
H13 |
210 |
249 |
|||||||||||
|
ZZK-YG3629 |
305*610*292 |
F7 |
1004 |
85 |
12.05 |
|
125 |
15.38 |
|||||
|
H11 |
175 |
205 |
|||||||||||
|
H13 |
210 |
249 |
|||||||||||
|
ZZK-YG6629 |
610*610*292 |
F7 |
2008 |
85 |
23.16 |
2000 |
125 |
29.53 |
|||||
|
H11 |
175 |
205 |
|||||||||||
|
H13 |
210 |
249 |
|||||||||||
|
ZZK-YG9629 |
915*610*292 |
F7 |
3014 |
85 |
33.98 |
5124 |
125 |
43.69 |
|||||
|
H11 |
175 |
205 |
|||||||||||
|
H13 |
210 |
249 |
|||||||||||
|
ZZK-YG12629 |
1220*610*292 |
F7 |
4016 |
85 |
45.09 |
6827 |
125 |
58.15 |
|||||
|
H11 |
175 |
205 |
|||||||||||
|
H13 |
210 |
249 |
|||||||||||
|
ZZK-YG12622 |
1260*630*220 |
F7 |
3429 |
85 |
34.67 |
5829 |
125 |
44.82 |
|||||
|
H11 |
175 |
205 |
|||||||||||
|
H13 |
210 |
249 |
|||||||||||
|
ZZK-YG6622 |
630*630*220 |
F7 |
1714 |
85 |
17.8 |
2914 |
125 |
22.85 |
|||||
|
H11 |
175 |
205 |
|||||||||||
|
H13 |
210 |
249 |
|||||||||||
|
ZZK-YG9422 |
968*484*220 |
F7 |
2024 |
85 |
20.58 |
3441 |
125 |
26.46 |
|||||
|
H11 |
175 |
205 |
|||||||||||
|
H13 |
210 |
249 |
|||||||||||
|
ZZK-YG4415 |
484*484*150 |
F7 |
632 |
85 |
6.59 |
1075 |
125 |
9.39 |
|||||
|
H11 |
175 |
205 |
|||||||||||
|
H13 |
210 |
249 |
|||||||||||
|
ZZK-YG4422 |
484*484*220 |
F7 |
1012 |
85 |
10.64 |
1720 |
125 |
13.58 |
|||||
|
H11 |
175 |
205 |
|||||||||||
|
H13 |
210 |
249 |
|||||||||||
|
ZZK-YG3315 |
320*320*150 |
F7 |
276 |
85 |
2.97 |
469 |
125 |
3.75 |
|||||
|
H11 |
175 |
205 |
|||||||||||
|
H13 |
210 |
249 |
|||||||||||
|
ZZK-YG3322 |
320*320*220 |
F7 |
440 |
85 |
4.8 |
751 |
125 |
6.05 |
|||||
|
H11 |
175 |
205 |
|||||||||||
|
H13 |
210 |
249 |
|||||||||||
|
Suggest final pressure loss is 2-3 times of original pressure loss, constant temperature 250℃,instant can be 300℃,special sizes or temperature requirement can be made according to the client's requirements. |
|||||||||||||
 |
||||||||||
|
||||||||||
 |
||||||||||
