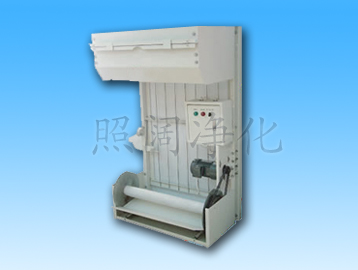

| Product name： | Roll filter |
| Description： |
Feature:
1. The entire filter adopts metal structure with rigidity and reliable properties
satisfy the most extreme working conditions.
2. Intelligent filter material replacement system, have the features of energy
saving effectively, reducing the cost of human resources, making the
operation more economical and stability.
3. Automatic replace filter material, controlling differential pressure
4. Assembled by modules, the structure is simple.
Technical parameter:
Model
Total width of filter mm
Rated air flow
Height of filter (mm)
5
(1524)
6
(1829)
7
(2134)
8
(2439)
9
(2743)
10
(3048)
11(3353)
12(3658)
ZZK-JR3
3(914)
9200
11300
13400
15500
17700
19800
21900
24000
ZZK-JR4
4(1219)
12700
15000
17800
20600
23600
26400
29200
32000
ZZK-JR5
5(1524)
15875
18750
22250
25750
29500
33000
36600
40000
ZZK-JR6
6(1829)
19050
22500
26700
30900
35400
39600
43800
48000
ZZK-JR7
7(2134)
22225
26250
31150
36050
41300
46200
51100
56000
ZZK-JR8
8(2439)
25400
30000
35600
41200
47200
52800
58400
64000
We can accept other size order beside the above mentioned size.
Application:
Suitable for primary filter section of air-conditioning system; working environment with high dustiness required to replace the filter material frequently; commercial building, subway, airport workplace etc.
Notice:
1. When unit is operating, please do not put the inflammable things nearby the units.
2. The units can be cleaned only when it stopped and switched off, otherwise the person may occur electric shock or injury.
3. Please do not directly wash units with water, do not inspect the units while operating; do not use steel wire or copper wire instead of fuse wire, please use normal standard fuse wire, otherwise may damage the units.
4. Please clean the units regularly. The units would be automatic alarm while running out of filter material, please replace the filter material in time.
 |
||||||||||
|
||||||||||
 |
||||||||||
