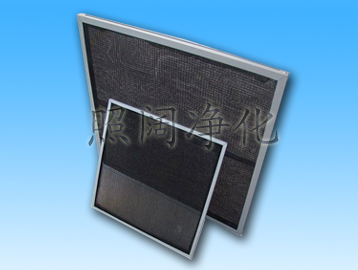

| Product name： | Nylon Net Primary Efficiency Filter |
| Description： |
Feature:
1. Big air flow, low resistance.
2. Long service life, be washable, high cost performance.
3. Light weight, easy to install.
Application:
Favorable dust removal property, widely used in fan units, diffused indoor equipment and big air flow ventilate system.
It is mainly suitable for pre-filter of air-conditioning system.
|
Model |
W*H*D (mm) |
Air Flow CMH |
Resistance Pa |
Filter Area M2 |
Frame materail |
Material |
|
ZZK-NL2510 |
290*595*10 |
3100 |
10 |
0.35 |
Alloy frame
galvanized
Stainless steel frame |
Nylon net |
|
ZZK-NL5510 |
595*595*10 |
6200 |
10 |
0.7 |
||
|
ZZK-NL2520 |
290*595*20 |
3100 |
15 |
0.7 |
||
|
ZZK-NL5520 |
595*595*20 |
6200 |
15 |
1.42 |
||
|
We can accept other size order beside the above mentioned size. |
||||||
 |
||||||||||
|
||||||||||
 |
||||||||||
